Volt Meter (0 to 550v)

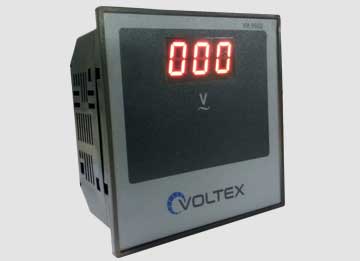

VM 9202

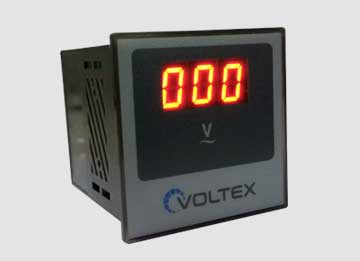

VM 7202

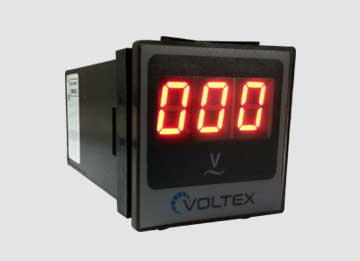

VM 4802
| Model | Frame Size (mm) | Panel Cutout Size (mm) | Display | |
|---|---|---|---|---|
| Upper | Lower | |||
| VM 9202 | 96 x 96 | 92 x 92 | 4 Digit, 0.56” RED | – |
| VM 7202 | 72 x 72 | 68 x 68 | 4 Digit, 0.56” RED | – |
| VM 4802 | 48 x 48 | 44 x 44 | 4 Digit, 0.56” RED | – |
| Input | 0-500V AC |
|---|
Specification
Supply Volt |
230V AC, ±10%, 50Hz |
| Range | 0-500V AC |
| Accuracy | ± 1% of FSD |
| Enclosure Material | ABS Plastic |
| Operating Temp. | 0°C – 55°C |
| Relative Humidity | Up to 95% RH Non Condensing |
Note: 750V AC available on Customer Request.
